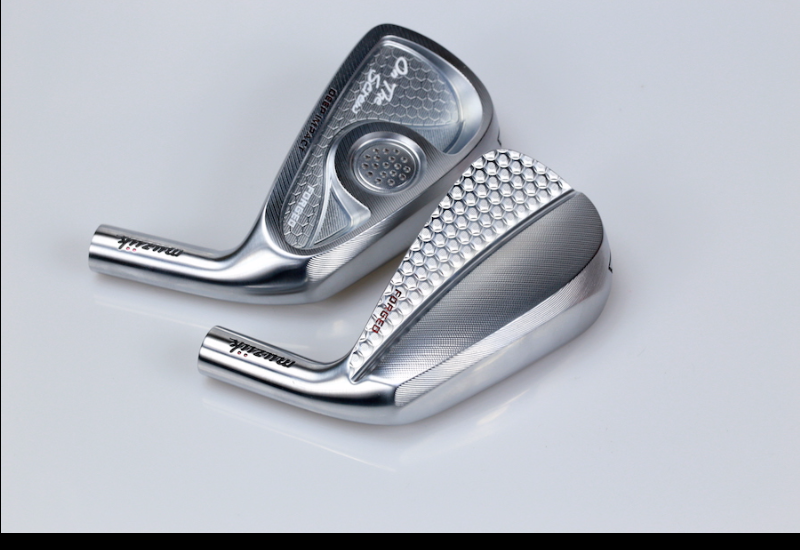

On The Screw Deep Forged Iron

最高級のやさしい軟鉄鍛造アイアン


Masterpiece muscle irons with superb feel, elegant craftsmanship and stunning performance


In order to build the ultimate muscle irons,
Muziik created its own forged die and a painstaking process which sees only 10 pieces cut in 20 hours using a single CNC machine.

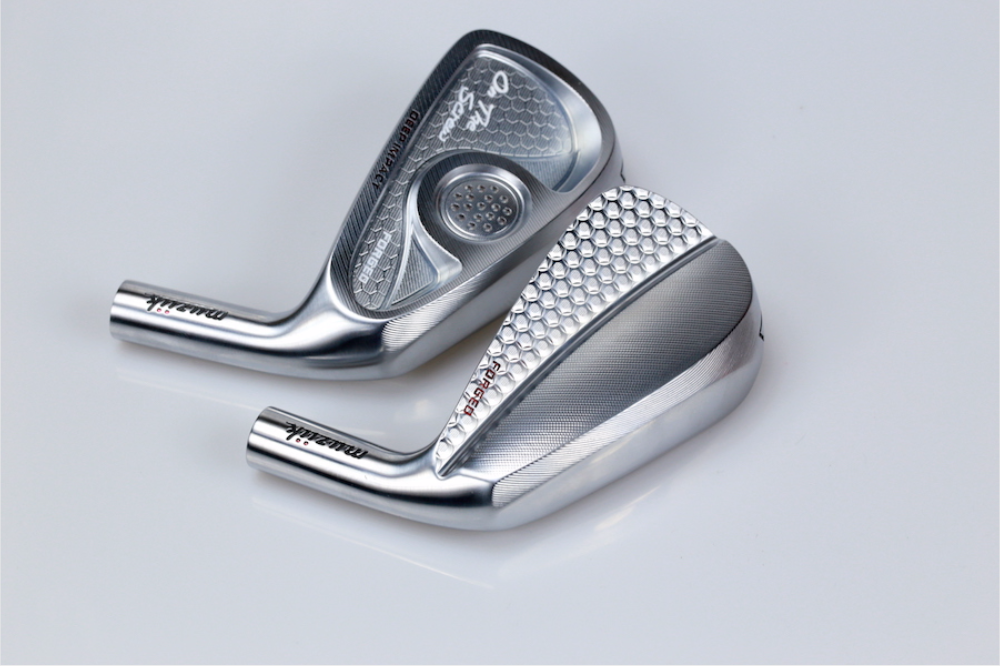

Each model of the Deep Forged Series Irons boasts beautiful finishes decorated with the Muziik icon. From the full muscle to the cavity back,
each generates an extremely soft feel due to the thickness of the soft steel heads and an under-copper structure.



 DEEP MUSCLE

POWERED MUSCLE

 DEEP IMPACT

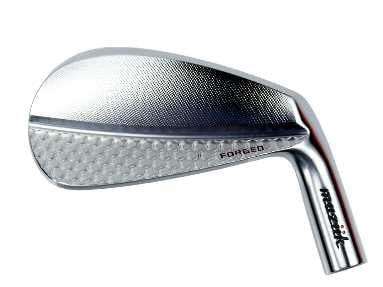

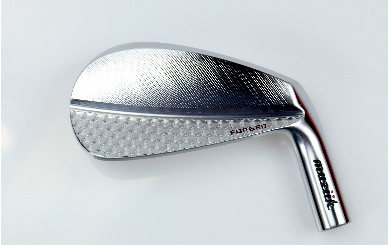

 On The Screw Deep Muscle Iron

TECHNOLOGY

S20 soft steel forging and precision CNC milling



The S20C soft steel head is created in an original Muziik forging mould and is CNC milled using a single machine, with each head taking two hours to complete to ensure sheer perfection. A low CG location makes it easy to get the ball airborne.

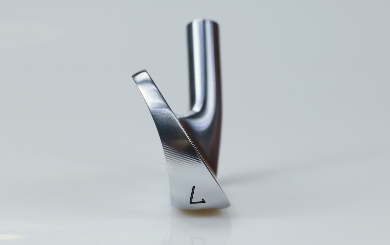

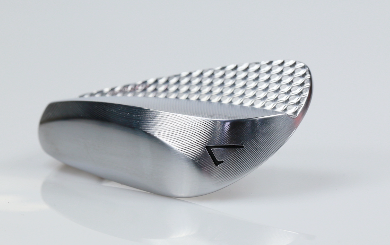

 Muziik sole for confident address position and easy takeaways





Although the Deep Muscle Iron has a thick body, the boldly-polished Muziik C-shaped sole design ensures that the head suits nicely on the grass and comes off easily on the takeaway.





Under-copper layer for soft feel





The unique soft forged feel of the Deep Muscle Iron is the result of the head’s three-layer structure, made up of the thick soft steel material, an under-copper layer and chrome plating.

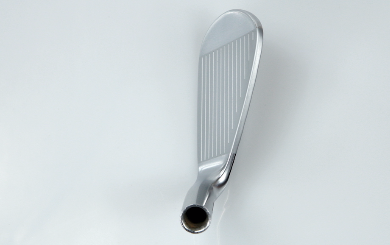

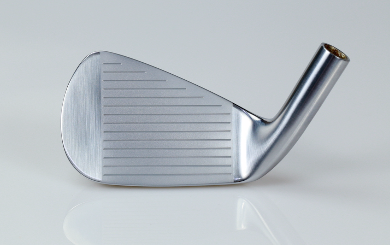

 Thin topline and straight neck design, reminiscent of the Japanese katana sword





A thin topline and short, straight-necked hosel help golfers visualise a sweet, solid impact as they address the ball.





ON THE SCREW DEEP MUSCLE IRON

                                                  On The Screw Deep Muscle Iron

 #3      #4 #5 #6 #7 #8 #9 PW
   material

                    S20C FORGED/UNDER CUPPER+PRECIOUS CNC MILLED
   LOFT(°)

21 24 27 30 34 38 42 45
   LIE(°)

60 60.5 61 61.5 62 62.5 63 63.5
   HEAD WEIGHT(g±)

244 251 258 265 272 279 286 293
   HOSEL INNER DIAMETER 9.45mm

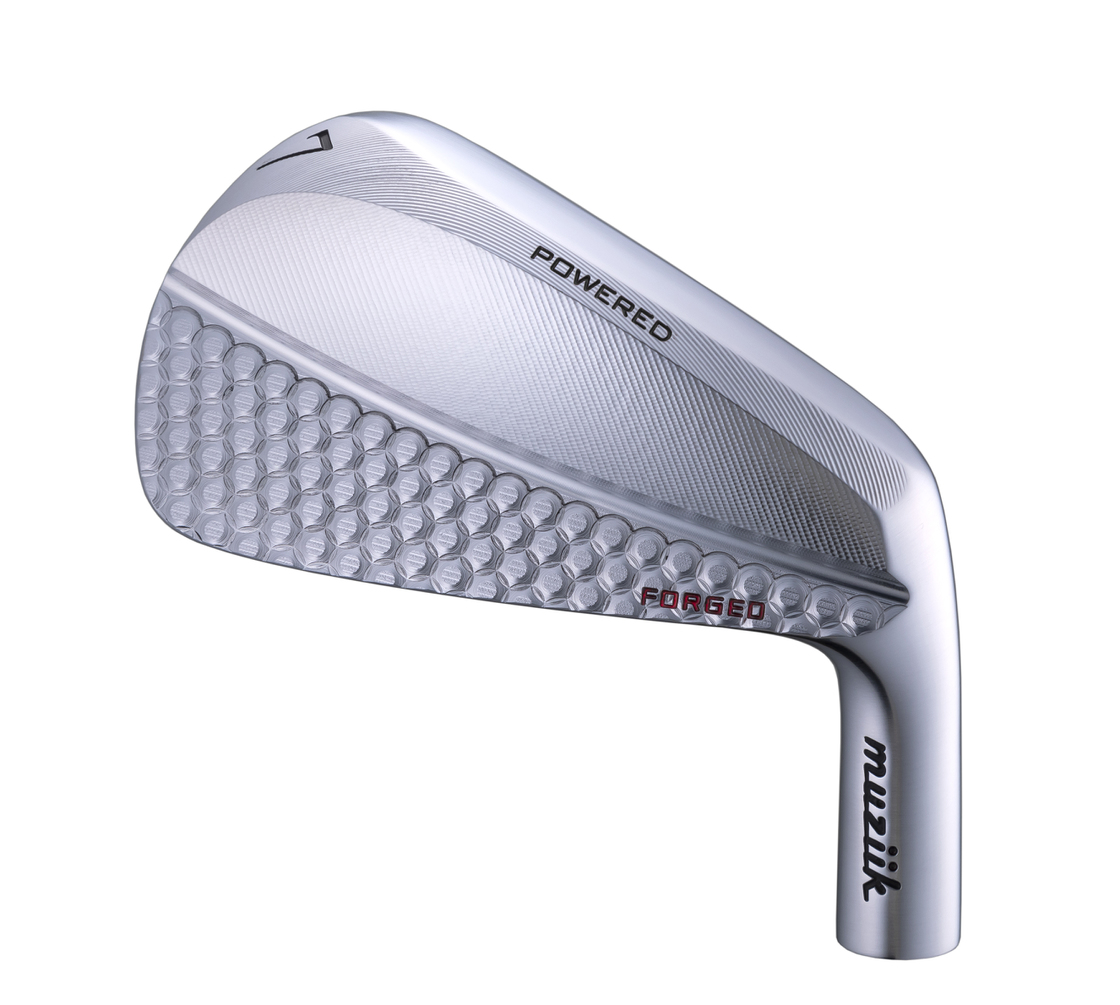

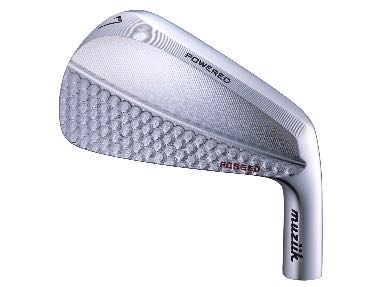

 On The Screw Powered Muscle Iron

最高級の軟鉄鍛造アイアン、ディープマッスルフォージドにストロングロフト設計アイアンが登場。形状、仕上げ、飛距離。全てが最高級です。



Powered Muscle Iron

The Muziik Deep Forged Series also features the Powered Muscle Iron designed by Strongloft.

                                                  On The Screw Powered Muscle Iron

 #5        #6 #7 #8 #9 PW GW
   material

                                S20C FORGED/UNDER CUPPER+PRECIOUS CNC MILLED
   LOFT(°)

24 27 30 34 38 42 46
   LIE(°)

60.5 61 61.5 62 62.5 63 63.5
   HEAD WEIGHT(g±)

251 265 272 279 286 293 296
   HOSEL INNER DIAMETER 9.45mm

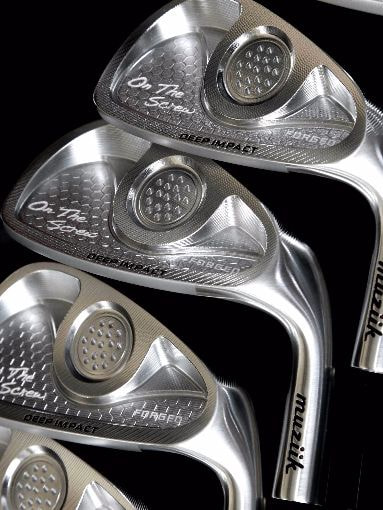

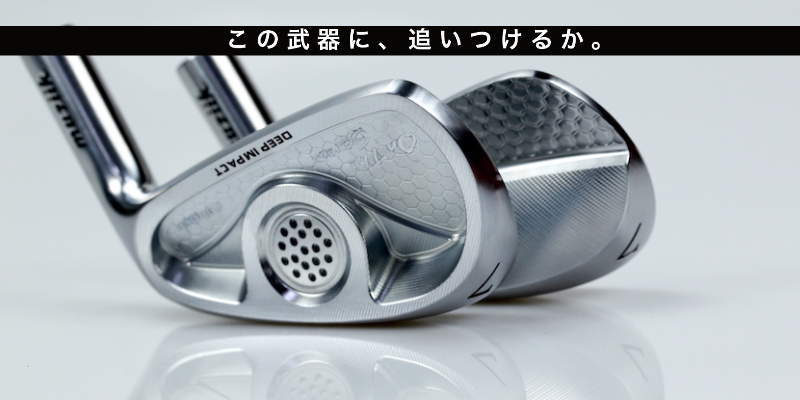

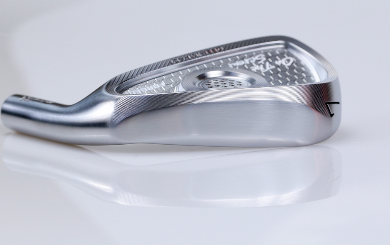

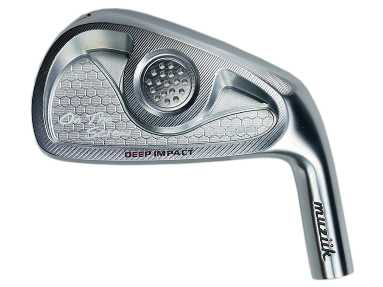

On The Screw Deep Impact Cavity Iron

TECHNOLOGY

S20 soft steel forging and precision CNC milling

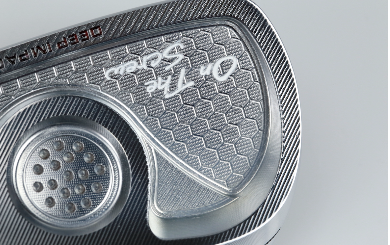

The Deep Impact Cavity is a masterpiece in soft forged cavity iron design, featuring an artistically-carved cavity back using full CNC milling.
Despite the forgiveness-enhancing cavity structure and low CG location,
the soft, forged feel is maintained due to the thickness of the impact area.







 Muziik sole for confident address position and easy takeaways


Like the Deep Muscle, the Deep Impact has a boldly-polished C-shaped sole that sits nicely on the grass and comes back easily on the takeaway.




Under-copper layer for soft feel





The three-layer structure of the Deep Impact Cavity with thick soft steel material, under-copper layer and chrome plating ensures a solid yet soft feel that is unique to the Deep Muscle Series.




 Semi-gooseneck hosel that ‘catches’ the ball well





The hosel has a semi-gooseneck design that creates the image of ‘wrapping’ the ball, helping golfers make solid impact and generate strong trajectories.

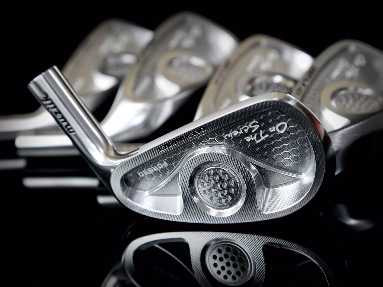

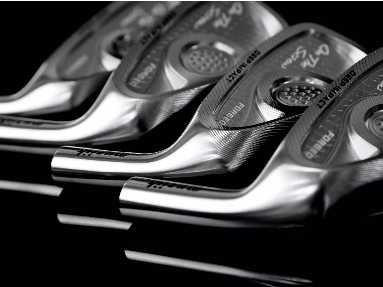

Image Photos

研磨師による曲線美と時間を掛けて削り出したCNCデザイン。顔の良さ、ディープで柔らかい打感、やさしさと抜けの良いソール。最高のアイアンを体感ください。






DEEP IMPACT FORGED SPEC

                                                  On The Screw Deep Impact Iron

 #4       #5 #6 #7 #8 #9 PW
   material

                    S20C FORGED/UNDER CUPPER+PRECIOUS CNC MILLED
   LOFT(°)

22 25 28 32 36 41 45
   LIE(°)

60.5 61 61.5 62 62.5 63 63.5
   HEAD WEIGHT(g±)

251 258 265 272 279 286 293
   HOSEL INNER DIAMETER 9.45mm
